Warehouse Product Picking System jSeeq®

jSeeq® is a system that uses the Quuppa system*, a positioning sensor, in conjunction with a production management system to instantly determine the location of products in the warehouse and significantly reduce the time spent picking products.

Quuppa system
The Quuppa system is a high-precision, real-time positioning system that uses a locator (receiver) to receive signals from a BLE tag attached to a product, and calculates the angle and distance of the received signals to calculate location information.

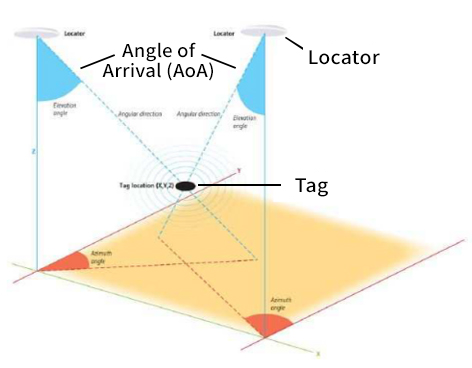

Quuppa system structure

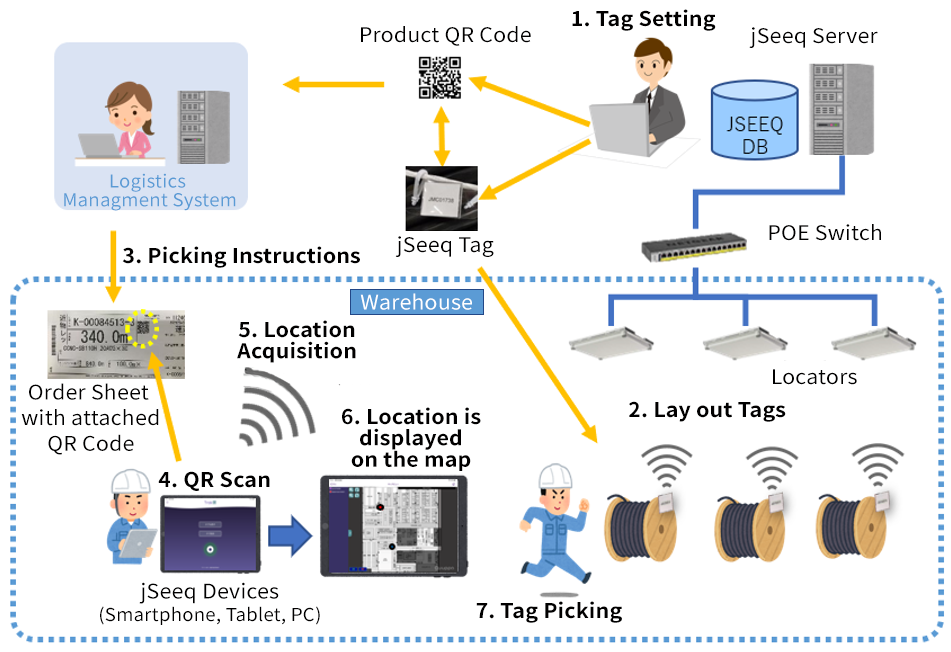

Example system configuration

■ By attaching a pre-registered jSeeq® tag to a product, the Quuppa system can instantly map out the location of the product in the warehouse using the QR code associated with it.

■ Anyone can start picking immediately, which saves a lot of time. And if a product is misplaced, it can be quickly found in the wrong place.

Features

  • Reduced working time
    No more searching for products. Quickly locate products, even if there is a sudden change of location, a mistake or a new worker.
  • Reduced errors
    Knowing the exact location of your products eliminates picking errors.
  • Optimise the placement of products
    Based on product shipment status and movement history data, you can optimise the placement of products in the warehouse.
  • Easy to change layout
    You can easily monitor the location of your products, so you are not influenced by layout changes.

Type of locator

LD-6L
・For indoor use
・For installation distances of less than 10m
・Nominal distance 100m

Item SPEC
Dimensions/Weight Diameter: 20cm,Thickest section: 4cm, 500g
Connection method Ethernet
Operating temperature 0°・・・60°C
Power supply PoE(2W) OR DC 12V/500mA
Certification FCC, CE, KC, Technical Regulations etc.

LD-7L
・For indoor and outdoor use
・For installation distances of 10 m or more or where high accuracy is required
・Nominal distance 300m

Item SPEC
Dimensions/Weight 400mm×380mm×59mm, 3.8kg
Connection method Ethernet
Operating temperature -20°・・・60°C
Power supply PoE(2W)
IP Grade IP65, dustproof class 6 (dust resistant)
waterproof class 5 (jet-proof)
Certification FCC, CE, KC, Technical Regulations etc.

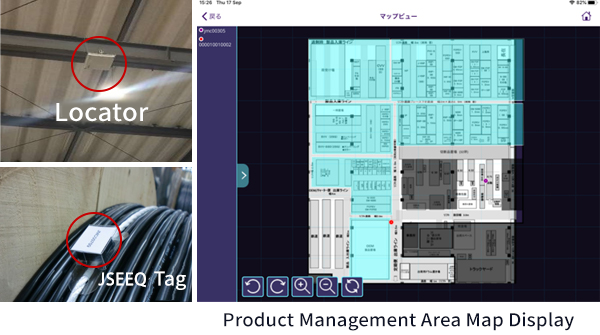

Installation examples

Our logistics warehouse (29 locators and 2,000 tags to manage the location of drums)

Problems before the introduction

  • The speed with which we could find a place to put our products depended on the experience of our workers.
  • There was a lot of work time lost due to misplacement.

The effect of the introduction

  • Drum collection time reduced by approx. 70%.
  • Even new workers can now easily pick up the products.
  • It is now possible to manage the flow of traffic and to obtain information to consider the best layout to improve work efficiency.
